G Series Container Dollies
High-quality, German-engineered container dollies with a carrying capacity of up to 88,000 lb | 40,000 kg.
Lift & Move Containers Yourself
For safe and efficient container movement, and reliable, long term performance, you can't go wrong with G Series container dollies - an ideal solution for moving containers around your factory, yard or warehouse.

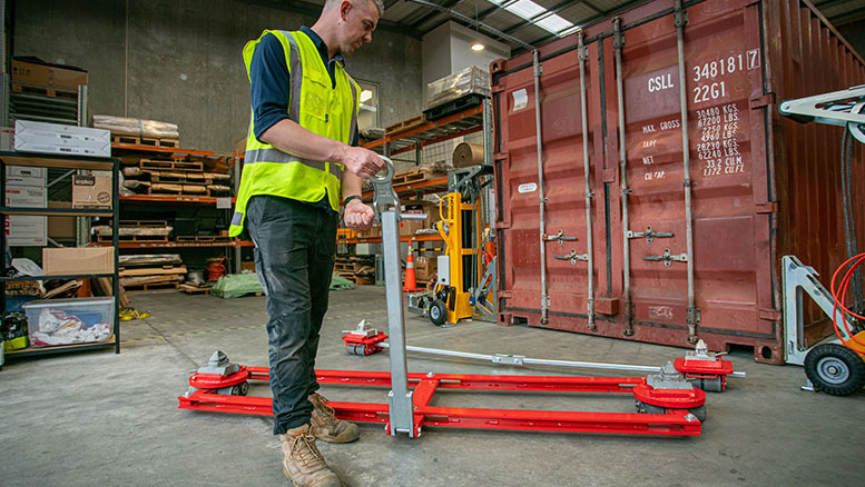

The two-part system consists of a lead dolly and following dolly that roll safely under the container, which you can lift with a Bison C-Lift or toe jacks.
The lead dolly has a handle bar, towing eye and swivel plates for towing and smooth steering behind a light forklift. Empty containers can be pulled by one or two people manually on smooth surfaces.
Self Sufficient Container Mobility
Maximize Your On-Site Space Efficiency
Free Up Chassis
Improve Worker Safety
Eliminate Crane Hire
Mobilize Container Assets
G Series Container Dollies
-
Quality German engineering
Designed to exacting standards in Germany, each G Series dolly is individually tested for quality and function and comes with a five-year warranty.
-
Secure twistlock for maximum safety
Specalized cone fittings lock to the underside of the container's corner castings, providing a highly secure connection at each corner.
-
Actuating bracket for smooth movement
A specially engineered bracket on the G6 and G12 rear dollies help keep all wheels in firm contact with the floor, making it safer and easier to navigate uneven surfaces.
-
Durable, non-marking rollers protect your floor
Durable rollers travel smoothly and don't leave unsightly marks or scuffs on ground surfaces.
-
Designed for indoor and outdoor use
G Series dollies are designed to move easily both indoors and outdoors on solid surfaces, including concrete, asphalt, or metal.
| Load Capacity | 26,400 lbs | 12,000 kg | ||
| Loading Height | 7 in | 176 mm | ||
| > Lead Dolly with Handlebar | ||||
| Number of Wheels | 8 | 8 | ||
| Overall Dimensions (L x W) | 24 x 89 in | 610 x 2259 mm | ||
| Steering Handlebar | 42.5in | 1080mm | ||
| Tare Weight | 167 lb | 75 kg | ||
| > Following Dolly | ||||
| Number of Wheels | 8 | 8 | ||
| Overall Dimensions (L x W) | 12 x 102.8 in | 304 x 2610 mm | ||
| Tare Weight | 111 lb | 50 kg | ||
| Load Capacity | 52,800 lb | 24,000 kg | ||
| Loading Height | 7 in | 176 mm | ||
| > Lead Dolly with Handlebar | ||||
| Number of Wheels | 16 | 16 | ||
| Overall Dimensions (L x W) | 20.9 x 89 in | 530 x 2259 mm | ||
| Steering Handlebar | 42.5 in | 1,080 mm | ||
| Tare Weight | 344 lb | 155 kg | ||
| > Following Dolly | ||||
| Number of Wheels | 16 | 16 | ||
| Overall Dimensions (L x W) | 10.4 x 118.1 in | 264 x 3,000 mm | ||
| Tare Weight | 136 lb | 61 kg | ||
| Load Capacity | 88,000 lb | 40,000 kg | ||
| Loading Height | 8.86 in | 225 mm | ||
| > Lead Dolly with Handlebar | ||||
| Number of Wheels | 8 | 8 | ||
| Overall Dimensions (L x W) | 53 x 89 in | 1347 x 2259 mm | ||
| Steering Handlebar | 63.78 in | 1620 mm | ||
| Tare Weight | 761 lb | 345 kg | ||
| > Following Dolly | ||||
| Number of Wheels | 8 | 8 | ||
| Overall Dimensions (L x W) | 11 x 89 in | 280 x 2259 mm | ||
| Tare Weight | 309 lb | 140 kg | ||
Trusted to perform
Bison combines first-class engineering, industrial strength components and rigorous manufacturing, to deliver quality equipment you can trust to perform in the toughest conditions.
Putting you in control
With Bison, you'll get more self-sufficiency and control over your operations, and the freedom to lift, weigh and move containers without relying on contract cranes, truck scales and heavy handling equipment.
From solutions to support
Working with Bison means exceptional service at every touch point, from our multi-lingual sales team, to our comprehensive training and global support network.
Compatible with all Bison C-Lifts
G Series dollies pair perfectly with Bison C-Lifts. Lift containers on and off trucks yourself, and move them around your site independently. No more crane hire charges, delays and administration to worry about.
